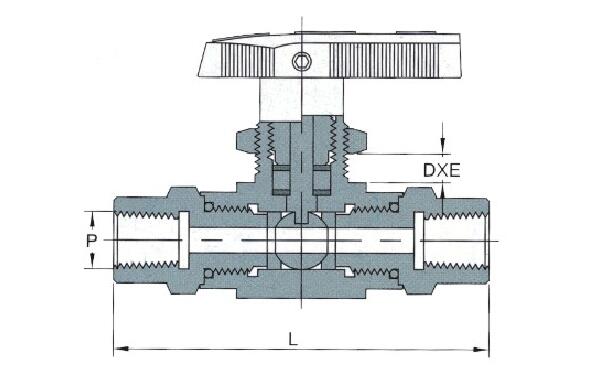

基本订货号 | T | L | DXE | |
英寸 | 毫米 | (mm) | ||
-QFT1-LWF-2 | NPT 1/8 | 2.52 | 64 | 16×6.4 |
-QFT1-LWF-4 | NTP 1/4 | 2.99 | 76 | 16×6.4 |
-QFT1-LWF-6 | NPT 3/8 | 3.7 | 94 | 20×6.4 |
-QFT1-LWF-8 | NPT 1/2 | 4.02 | 1.2 | 23×9.7 |
-QFT1-LWF-R2 | RT 1/8 | 2.52 | 64 | 16×6.4 |
-QFT1-LWF-R4 | RT 1/4 | 2.99 | 76 | 16×6.4 |
-QFT1-LWF-R6 | RT 3/8 | 3.7 | 94 | 20×6.4 |
-QFT1-LWF-R8 | RT 1/3 | 4.02 | 102 | 23×9.7 |
-QFT1-LWF-G2 | G1/8 | 2.52 | 64 | 16×6.4 |
-QFT1-LWF-G4 | G1/4 | 2.99 | 76 | 16×6.4 |
-QFT1-LWF-G6 | G3/8 | 3.7 | 94 | 20×6.4 |
-QFT1-LWF-G8 | G1/2 | 4.02 | 102 | 23×9.7 |
-QFT1-LWF-M10 | M10×1 | 2.52 | 64 | 16×6.4 |
-QFT1-LWF-M14 | M14×1.5 | 2.99 | 76 | 16×6.4 |
-QFT1-LWF-M16 | M16×1.5 | 3.23 | 82 | 20×6.4 |
-QFT1-LWF-M18 | M18×1.5 | 3.7 | 94 | 23×9.7 |
-QFT1-LWF-M20 | M20×1.5 | 3.94 | 100 | 23×9.7 |
